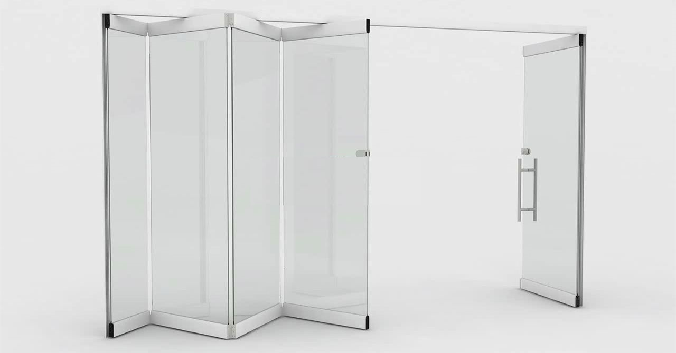

Z FOLDING GLASS SYSTEMS FEATURES
It is a system that can be opened completely at any time. It gives the building a modern and aesthetic appearance.
The absence of thresholds in showcase systems provides an advantage for users.
Windows can be opened in the desired direction (right and/or left and/or middle) without using the parking lot (Pool) by using 1 Butterfly Wheel (on each Window/Wing). Glasses/Wings can be collected on one side or both sides or in the middle at the same time; this provides ease of use in the area where the system is installed.
High security 10mm Tempered Glass is applied in the system.
Aluminum profile joinery is used and in this context, 70% Thermal Insulation is provided in the System.
Stainless bearing system is used.
The entire locking system used in the Top Hanging Z Folding Glass System is stainless chrome.
Bristle wicks should be applied from the base.
Maximum Wing (Glass) Height: 3800mm
Maximum Wing (Glass) Width: 950mm
Maximum Wing (Glass) Weight: 92kg
Aluminum Case Weight & Length: 13,00kg ; 6.00meter
Aluminum Plinth Weight & Length: 19.00kg ; 6.50meters
Aluminum Side Strut Weight & Length: 5.00kg ; 6.00meter
